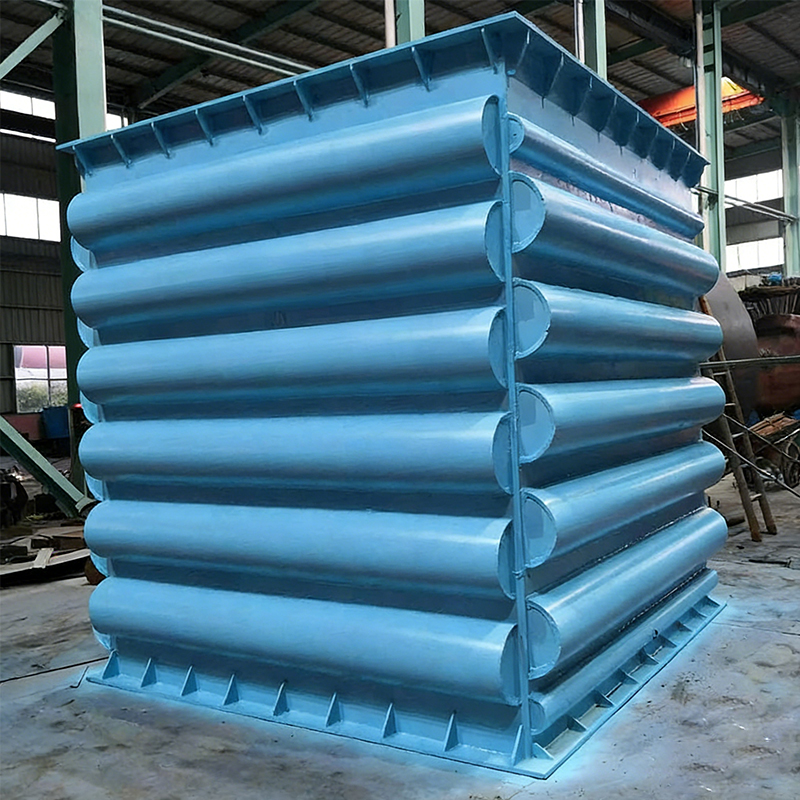

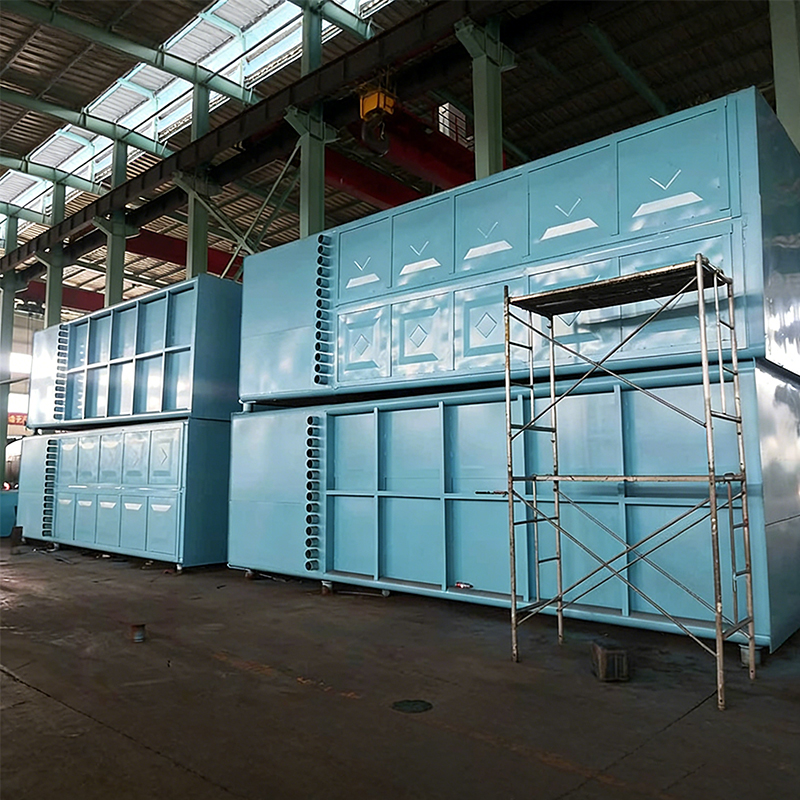

Coke Oven Flue Gas attero Caloris Boiler

Coke Oven Flue Gas attero Caloris Boiler

Coke Oven Flue Gas vastum Caloris Boiler est summus efficientia, industria salutaris fabrica specie pro industria coquendi evoluta. Intendit recuperare et utere magnas quantitates caloris vasti a medio- et humilis temperaturae vaporum fluminum in coquendo productione generato, hanc industriam vasti caloris in vaporem vel electricitatem utibile convertens. Hoc instrumentum non solum signanter industriam consummationis sumptus ad conatum reducet, sed etiam efficaciter inquinationem environmental minuit, faciens clavem instrumenti ad coquendas societates ad progressionem viridis et humilis carbonis consequendam. In productione coquendi, processus tales sicut clibanus calefactionis, gasi crudi refrigerationis, et siccae exstinguentis generant magnas quantitates medii et humilis temperaturae fluminum gasorum ad 260℃-300℃. Directe emissionem huius gasi fluvii non solum consequitur in significantibus energiae vastitatibus, sed etiam inquinamenta scelerisque environmental exacerbat. Noster Coke clibanus flue gas vastum calorem boiler adhibet progressionem caloris commutationem technologiam ad reducendum vaporem temperatum ad 140℃-160℃ antequam eam in atmosphaeram dimittat, cum eodem tempore recepto calore utendo ad generandum vaporem, qui directe ad processuum producendum, calefactionem vel ad generationem potentiae adhiberi potest.

Contactus Us
  • Features
  • Nuntius
Features

Coke Oven Flue Gas vastum Caloris Boiler est summus efficientia, industria salutaris fabrica specie pro industria coquendi evoluta. Intendit recuperare et utere magnas quantitates caloris vasti a medio- et humilis temperaturae vaporum fluminum in coquendo productione generato, hanc industriam vasti caloris in vaporem vel electricitatem utibile convertens. Hoc instrumentum non solum signanter industriam consummationis sumptus ad conatum reducet, sed etiam efficaciter inquinationem environmental minuit, faciens clavem instrumenti ad coquendas societates ad progressionem viridis et humilis carbonis consequendam. In productione coquendi, processus tales sicut clibanus calefactionis, gasi crudi refrigerationis, et siccae exstinguentis generant magnas quantitates medii et humilis temperaturae fluminum gasorum ad 260℃-300℃. Directe emissionem huius gasi fluvii non solum consequitur in significantibus energiae vastitatibus, sed etiam inquinamenta scelerisque environmental exacerbat. Noster Coke clibanus flue gas vastum calorem boiler adhibet progressionem caloris commutationem technologiam ad reducendum vaporem temperatum ad 140℃-160℃ antequam eam in atmosphaeram dimittat, cum eodem tempore recepto calore utendo ad generandum vaporem, qui directe ad processuum producendum, calefactionem vel ad generationem potentiae adhiberi potest.



Product Features:
1. High Calor Recuperatio Efficiency: The boiler's heat recovery efficiency can reach over 85%, reducing the inlet flue gas temperature from 260℃-300℃ to approximately 140℃-160℃, utilizing waste heat to generate steam.
2. Transfer Design Consectetur Caloris: Superficies calefaciens consistit in sectione oeconomizer et sectione evaporatore. The economizer section uses a counter-current arrangement to improve heat transfer temperature and pressure, while the evaporator section uses a co-current arrangement. H-shaped finned tubes are used, with a welding fusion rate of over 98% between the fins and the steel tubes, ensuring a good heat transfer coefficient.
3. Gere, Repugnans et Fraxinus-repugnans Design: The H-shaped finned tube heat exchanger uses a parallel arrangement, dividing the flue gas space into several small areas to achieve a uniform flow effect. Comparatur ad nudum tubum vel spiralem finxerunt caloris nummularii, hoc consilium auget fasciculum vitalem tubi per 3-4 temporibus. A 6-13mm gap is left between the H-shaped fins to guide airflow and sweep away ash accumulation, providing a self-cleaning function at suitable wind speeds, thereby reducing ash accumulation.
4. Compactae structurae et Resistentiae Humilis: Consilium circulatio coacta permittit ordinationem compactam et flexibilem superficierum calefactionis. The straight channels formed by the H-shaped fins help reduce flue gas resistance, lowering the operating and investment costs of the induced draft fan. Aliquae exempla membranae parietis flue saepta utuntur, quae calefacientem aream augent et signationem et firmitatem boiler augent.
5. Ros Point ROSIO Praesidium: By rationally controlling the metal wall temperature of the heating surfaces to avoid the flue gas dew point temperature, a prerequisite for preventing leaks in the heating surfaces. The heat pipe waste heat boiler's arrangement of the heat exchange surfaces in the low-temperature flue gas zone also considers preventing dew point corrosion.
6. Flexibilis configurationis et sustentationis: PRAEFURNIUM nativus esse potest secundum capacitatem plantae cocturae, parametri calorem dissipare et condiciones situs actualis. Propositum (exempli gratia, traditionalis horizontali vel novo verticali) determinari potest secundum requisita. The boiler employs a modular design, allowing for individual replacement of heat pipe elements or needle tube assemblies, facilitating maintenance.
Principium opus: Coke clibanus flue gas vasto calore boiler circulationem coactam consilio utetur. The steam-water working fluid is driven by feedwater pumps and hot water circulation pumps within the tubes, enabling an unrestricted and compact arrangement of the heating surfaces.
Systema boiler maxime constat duabus partibus: sectione economizer et sectione evaporatore;
1. Economiser Sectio: Ordinationem contra-currentem assumit (operans fluidum in contrariam partem ad gas exhauriendum fluit). Aquae nutrimentalis industriam e lassitudine gasorum haurit, aquae temperaturae et vaporis productionem augens.
2. Evaporator Sectio: Ordinatio co-venae adoptat. Water passes through the heating surfaces to generate steam, which enters the inlet header and is then introduced into the boiler drum via riser pipes.
The normal operating procedure is as follows: An opening is made before the flap valve in the underground main flue of the coke oven to draw out the hot flue gas (260℃-300℃). After heat exchange and cooling to 140℃-160℃ through the waste heat boiler system, it is discharged into the original chimney by the induced draft fan.





Related Products
De
Jiangsu Shineng Chemical Equipment Co., Ltd.
As China coke oven waste heat boiler manufacturer and coke oven flue gas whb supplier, Jiangsu Shineng Chemical Equipment Co., Ltd, founded in 2005, the company specializes in the R&D and manufacturing of flue gas waste heat recovery systems and chemical equipment, possessing comprehensive in-house capabilities spanning from heat pipe development and nickel-based brazing to pressure vessel fabrication. Our products are widely used in coal chemical, metallurgy, power generation, and synthetic ammonia industries, and have been exported to overseas markets.
Testimonium Honoris
  • Occupational Health and Safety Management System Certification
  • Environmental Management System Certification
  • Quality Management System Certification
  • Certification
  • Testimonium LICENTIA
  • Productio Licentia Specialis Equipment Popularis Reipublicae Sinarum
  • Productio Licentia Specialis Equipment Popularis Reipublicae Sinarum
  • Certification
  • Certification
News
Industria scientia

1. Quid est Coke Oven vastum caloris boiler

A Coke Oven vastum caloris boiler est specialitas vastum calor recuperatio boiler ordinatur ad energiam scelerisque capiendam ab summus temperaturae fiue gasorum generatorum in productione Coke. In pila typica Coke clibano, vapores exeunt in combustionem fiue at 800°C ad 1000°C significantem energiae resource quae alioqui vastaretur. A Coking WHB hunc calorem recuperat ad producendum vaporem superheatum propter potentiam generationis vel plantae calefactionis. Secundum Sina Coking Industry Energy Efficiency Report MMXXIII A typicam 1.2 decies ton / anno Coke plant recuperare potest 55-70 MW de industria scelerisque generans 25-35 vaporis t/h. Hoc translatum est ad generationem annuam 60,000-80,000 MWH et reductionem in emissiones CO₂ 45,000-60,000 talentorum in anno. The Coke Oven Flue Gas WHB sic est pars critica pro hodiernis, operationibus coquendis energiae efficientis.

Figura I: Vastum Caloris Recuperatio Potentia ab Coke Oven Capacity
500k t/y 22 MW 1.0M t/y* 45 MW 1.5M t/y 68 MW 2.0M t/y 92 MW

Charta horizontalis talea vastum calorem recupereti potentialem ex diversis facultatibus clibani clibani ostendit. 500,000 ton/annus clibanus coquus circiter 22 MW energiae scelerisque recuperare potest, cum magna 2.0 decies centena millia ton/annorum planta ad 92 MW capere potest. Pro singulis centum milia talentorum productionis coci annui, circiter 4.5-5.0 MW caloris recuperabilis praesto est a Gas flue amnis. Agitur de 35-45% totius caloris initus ad pilam clibanum cok. Installing a * Coke Oven WHB , coquens planta XV 000-70,000 MWH electricitatis annuatim generare potest, 25-40% sumptio potentiae acquisitae reducendo. Praeterea vapor receptus potest reponere auxiliares boiles carbonum accensorum, emissiones CO₂ secans totam plantam per 10-15%. The Coking Industry WHB ideoque beneficia tam oeconomica quam environmental tradit.

Ut specialioribus Sina Coke Oven vastum Caloris Boiler et Coke Oven Flue Gas WHB Manufacturer , Jiangsu Shineng Chemical Equipment Co., Ltd. consilia complere vastum calorem recupereti systemata coke clibano gravida. Eorum Industriae WHB solutiones incorporant summus temperaturae mixturae caloris nummulariorum, systematis fuliginis automatae, et materiae repugnantis corrosio-nisi in ambitus gasi sulphuris altitudinis.

2. Quomodo Coke Oven Vastum Caloris Boiler Opus?

A Coke Oven Calor Recuperatio systema typice operatur sicut vaporis vaporis commutatoris fiue ductus in principali ductus post pilam clibanum coke. Gas fluminum calidum ad 800-1000°C transfluit per fasciculos fistulae imprimis designatos, transferens calorem ad aquam/fumi circulationem intus. PRAEFURNIUM plures sectiones includit: superheatrum (ad vaporem caliditatem excitandum), evaporatorem (pro generatione vaporis), et oeconomizer (ad preheat feedwater). Naturalis vel coacta circulatio condiciones hydrodynamicas stabiles conservat. Linea chart infra indicat figuram temperaturae typicam gasi flue dum per WHB transit.

Figure 2: Flue Gas Temperature Reductio in Coke Oven WHB
Calor commutationem sectionis → Superheater Evaporator Economiser 920°C 680° C CCCLXXX° 165°C Gas temperatus fiue (°C)

Linea chart demonstrat temperaturas reductionem e clibani flue gasi sicut per WHB fluit. Insitus gasi 920°C per superheatrum transit (920 → 680°C), deinde evaporator (680 → 380°C), denique economizer (380 → 165°C). Totalis temperatus gutta 755°C correspondet calori recuperationis efficientiae 75-82% pro coke moderno in clibano WHB. Pro typica 1.2 decies centena millia ton/anno coke plantae cum fluore gasorum 180,000 Nm³/h, haec recuperatio reddit circiter 32 t/h vaporis superheati ad 4.0 MPa et 430°C. Vapor potest agere 7.5 MW turbinis generantis, circiter 60.000 MWH annuatim producens. Accedit, quod temperatura exhausta imminuta (infra 170°C) permittit ut processus tutior amni et pollutio scelerisque minuatur. Systema etiam hydrocarbonum condensabile capit, altiore vegetabili effectus environmental emendans.

Jiangsu Shineng's Vastum Caloris Coke Planta Recuperatio systemata comprehendunt intelligentem technologiam moderatricem quae circulationem aquarum ac vaporem ambitum accommodat in tempore reali in clibano cycli subnixo. Eorum Coke Oven Flue Gate Valve integratio permittit ad inconsutilem diversitatem gasi fluvii in sustentatione vel clibano cycli calefactionis, ut continuam operationem plantae obtineat.

3. euismod Commoda et Technology Comparatio

A Coke Oven vastum caloris boiler Multa beneficia praebet: reducta cibus consummatio, emissiones CO₂ inferioris et quaestus melioris. Mensa infra cum indicibus praecipuis perficiendis pro coke plantam comparat ante et post inaugurari WHB in 1.2 decies centena millia ton/annorum altilium.

Mensa: euismod emendatio cum Coke Oven WHB (1.2M t/y coke herbae causa)
Parameter ante WHB * Post WHB Install Mutatio
Clibano industria specifica (GJ/t coke) 2.85 2.18 -23.5%
Vapor generationis (t/h) 0 32 32 t/h
Potentia generationis (MW) 0 7.5 7.5 MW
CO reduction (tons/annus) baseline 52,000 annua salutaris
Figure 3: Power Generation Capacity by Coke Oven Battery Size
Potentia potentia generationis (MW) 3.2 0.5M t/y 5.1 0.8M t/y 7.8 1.2M t/y 11.5 1.8M t/y

Columna chart ostendit potentiam generationis capacitatem potentiae ex coke clibani fiue gas vasti caloris receptam secundum productionem annui Coke. A 0.5 decies centena ton/anno circiter 3.2 MW generare potest, cum magna facilitas 1.8 decies centena millia ton/annum usque ad 11.5 MW producere potest. Pro qualibet 100,000 talenta productionis coci annui, circiter 0.65-0.70 MW potentiae generari potest usus moderni Coke Oven Flue Gas WHB ratio. Hoc translatum est ad productionem annuam electricitatis 25,000 ad 90,000 MWH secundum plantae magnitudinem, 30-45% de propria potentia consumptionis plantae coctionis obtegens. Recepta potestas reducit electricitatem emptam gratuita et altiore vehementia carbonis coci productionem per 18-25% demittit. Porro, Coking Industry WHB Supplier systemata saepe vocandum pro creditarum carbonii sub emissione internationali structurarum reductione, additis reditibus oeconomicis comparando. Vapor etiam adhiberi potest ad processus calculi preheating vel chemici byproducti processus, cascaded energiae utendo assequendum.

Figura 4: euismod Radar - Standard vs. Advanced Coke Oven WHB
Calor recuperatio efficientiam Summus temp vetustatem Fouling resistentia cyclica stabilitas Corrosio resistentia

Charta radar comparat conventionalem Coke clibanum vastum calorem recuperandi consilium cum progresso solutione ab Jiangsu Shineng. Consilia conventionales circiter 60-70 in locis clavis desudant ut efficientiam recuperandi calor et resistentia foedans. Shineng's Coke Oven vastum caloris boiler ustulo supra 90 per omnia metrica attingit, cum foedum resistentia 95 ob pinnam spiralem optimized spatia et systemata pulsus fuliginis automated. Provectus consilium meliorem calorem recuperare efficientiam per 18-22% ad conventionales unitates , directe vertentes in 20-25% plus vaporis generationis pro eodem fluxu gasi fluvii. Usus nickel-substructio fistulae aeneae pinnatae (in-domus evolutae) resistentiam praebet superiorem etiam cum processus coquendi gasi fluvialis continens compositiones sulphuris et naphthalenes. Ut a * Coke Oven vastum caloris boiler Manufacturer cum duobus fere decenniis experientiae, Jiangsu Shineng tradit consuetudinem Industriae WHB for Coke Oven solutiones quae maximize in obsidione sunt reditus dum normas circumscriptiones strictas occurrens.

4. Saepe Interrogata (Q &)

  1. Q1: Quid est typicam periodum payback pro Coke Oven Vastum Caloris Boilerum in coque planta? Ex pluribus inceptis in Sinis, India et Europa, tempus payback pro a . fundatum est Coke Oven WHB vagatur ab 12 ad 24 menses, pendentibus electricitatis pretibus localibus et horis operantibus. Ad 1.2 decies centena millia ton/annorum vim producentem 7-8 MW, peculi annui USD 3 decies centena milia excedere possunt, cum gratuita capitalia intra 18 menses recepta.
  2. Q2: Quomodo WHB tractat de compositione gasi fiue provocantis ex furnis coci (naphthalene, H₂S, tar)? Modern Coke Oven Calor Recuperatio systemata incorporare specialiter destinatis tubulis latis bitumine ( 15-25 mm ) ad magnas implicitas incorporandi. Online systemata fuligine-flantia (vapor vel acusticus) singulas 4-6 horas agunt. Jiangsu Shineng's Coke Oven Flue Gas WHB Manufacturer solutiones etiam includunt prae-scrubber sectionem pro remotione bitumine gravi, servans scelerisque effectus supra 95% super expeditionem 6 mensis.
  3. Q3: Num WHB integrari cum batteries coke existentes sine interpellatione productionis? Ita. Ut a * Coking Industry WHB Supplier , Jiangsu Shineng specialitas in consiliis retrofit modularis. WHB installatur in exsistenti gas duct cum bypass dampers ( Sina Coke Oven Flue Gate Valve ecclesias), permittens coke clibano ad institutionem normaliter operandam. Ultimum vinculum-in requirit 5-7 dies temporis downtime, typice durante altilium calefactio conservationis periodi.
  4. Q4: Quid vaporis parametri efficiuntur ex furno coke WHB? Typical Vastum Caloris Coke Planta Recuperatio System consilia saturatum vel superheatum vaporem efficiunt ad 2.5-5.3 MPa et 350-450°C. Maiores enim coke batteries (supra 1.5M t/y), pressionis altae usque ad 9.8 MPa, 540°C factibiles sunt, efficiens generationem turbinem densantem. Jiangsu Shineng's Industriae WHB oblatio comprehendit tam medium pressurae quam figurationes altae pressurae, cum lectionibus innititur gas temperatura et plantarum potentia requisita.

Societas introductio: Jiangsu Shineng Chemical Equipment Co., Ltd Sinis fiue gas recuperatio unitas manufacturer et vastum calor recuperatio systema societatis , Jiangsu Shineng Chemical Equipment Co, Ltd, condita in MMV, specialitas in R&D et fabricandi gas vasti caloris systemata recuperandi et apparatum chemicum, facultatem comprehensivam in-domum possidens facultates ex calore fistulae evolutionis et nickel-substructio brazing ad pressionis vas fabricationis. Producti nostri late usi sunt in chemicis, metallurgiis, generationibus potentiae et industriae ammoniaci synthetica, et ad mercatus transmarinas exportati sunt. Ut ducens Coke Oven vastum caloris boiler Manufacturer et Coke Oven Flue Gas WHB Supplier , Splendens plenarium praebet Coke Oven Calor Recuperatio solutiones, ab machinatione et fabricatione ad subsidium committendum et post venditiones, adiuvando plantas coquendas significantes energiae compendia et emissiones reductiones consequi.
